DC to 85 GHz High Performance Components

Pulsar Microwave Corporation, established in 1987, is a valued manufacturer and supplier of high quality RF and microwave passive components in the frequency range of DC to 85 GHz. Custom specifications are available at little to no extra cost, when based on a standard catalog item.

New Products

8-Way Power Divider, 25-35 GHz

Pulsar Model PS8-50-454/4S covers the frequency range of 25-35 GHz with 2.5 dB insertion loss, 12 dB isolation and a maximum VSWR of 1.90:1. Amplitude and phase balance are 0.8 dB and +/- 12 degrees, respectively. Maximum input power is 10 watts. 2.92 female connectors are utilized in a housing with dimensions 4.0 x 2.0 x 0.40 inches.

Specifications: PS8-50-454/4S
View our complete line of 8-Way Power Dividers/Combiners to 40 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

PS8-50-454/4S Power Divider

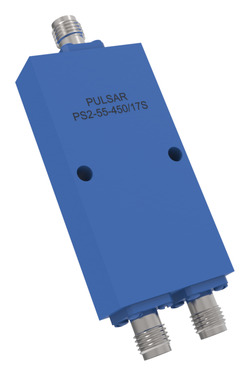

2-Way Power Divider, 5-40 GHz

Pulsar Model PS2-55-450-17S covers the frequency range of 1-40 GHz with 2.8 dB insertion loss, 10 dB isolation from 1-5 GHz and 13 dB from 5-40 GHz. and a maximum VSWR of 1.90:1. Amplitude and phase balance are 0.6 dB and +/- 8 degrees, respectively. Maximum input power is 10 watts. 2.92 female connectors are utilized in a housing with dimensions 2.0 X 1.0 X 0.40 inches.

Specifications: PS2-55-450/17S
View our complete line of 2-Way Power Dividers/Combiners to 70 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

PS2-55-450/17S Power Divider

Directional Coupler, 20 dB, 1-40 Ghz

Pulsar Model CS20-53-436/13 is a new 20 dB coupler covering the frequency range of 1-40 GHz with 1.6 dB insertion loss. Directivity is greater than 10 dB and flatness is +/- 0.6 dB 1-20 GHz and +/- 1.5 dB 1-40 GHz. The VSWR is 1.80:1 maximum and the unit can handle 20 watts into a 1.20:1 load. Connectors are 2.92 mm female.

Specifications: CS20-53-436/13
View our complete line of 20 dB Coaxial Directional Couplers to 60 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

CS20-53-436/13 Directional Coupler

Directional Coupler, 20 dB, 2-40 GHz

Pulsar Model CS20-52-436/9 is a new 20 dB coupler covering the frequency range of 2-40 Ghz with 1.6 dB insertion loss. Directivity is greater than 10 dB and flatness is +/- 0.5 dB 2-20 Ghz and +/- 1.0 dB 2-40 Ghz. The VSWR is 1.80:1 maximum and the unit can handle 20 watts into a 1.20:1 load. Connectors are 2.92 mm female.

Specifications: CS20-52-436/9
View our complete line of 20 dB Coaxial Directional Couplers to 60 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

CS20-52-436/9 Directional Coupler
