2-Way Power Dividers/Combiners: Stripline

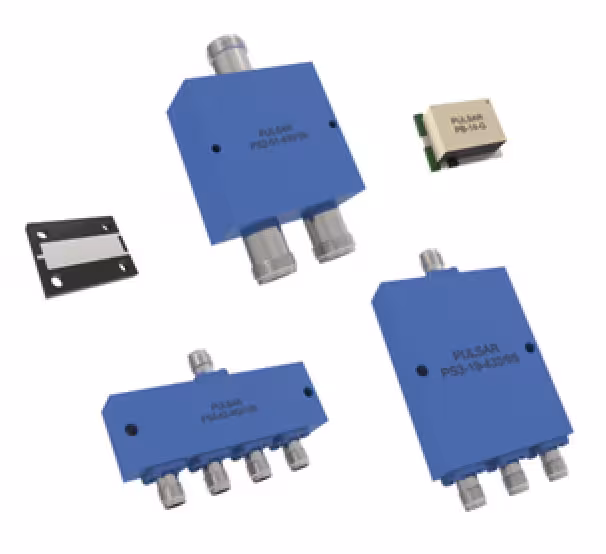

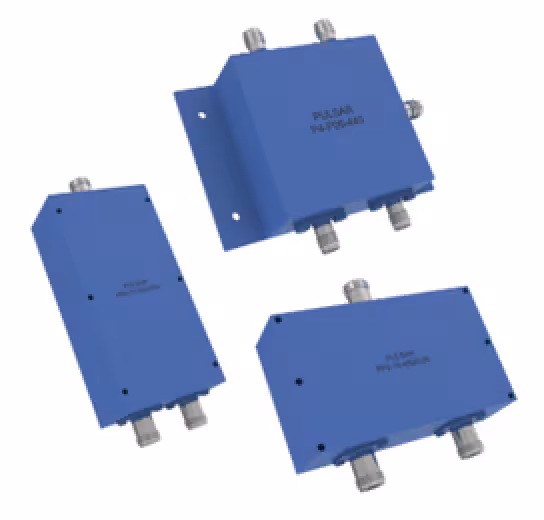

Pulsar Microwave manufactures a large selection of 2-way power dividers in narrowband and broadband configurations, covering frequencies from 225 MHz to 70 GHz. They are designed to handle from 10 to 30 watts input power in a 50-ohm transmission system. Microstrip or stripline designs are utilized, and optimized for best performance.
Units come standard with SMA or N female connectors, or 2.92mm, 2.40mm, and 1.85mm connectors for high frequency components.
|
Frequency Range (GHz) |
Insertion Loss (dB) max. |
Isolation (dB) min. |
Amplitude Balance (dB) max. |
Phase Balance (deg) max. |
VSWR max. |
Input Power (watts) max. |
Connector Type |
P/N | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| 0.225 | 0.4 | 0.4 | 22 | 0.2 | 2° | 1.20:1 | 30 | N | PS2-01-450/1N Add to RFQ |
| 0.225 | 0.4 | 0.4 | 25 | 0.2 | 2° | 1.20:1 | 30 | SMA | PS2-01-450/1S Add to RFQ |
| 0.25 | 0.5 | 0.4 | 22 | 0.2 | 2° | 1.20:1 | 30 | N | PS2-02-450/1N Add to RFQ |
| 0.25 | 0.5 | 0.4 | 22 | 0.2 | 2° | 1:20:1 | 30 | SMA | PS2-02-450/1S Add to RFQ |
| 0.4 | 1.0 | 0.4 | 18 | 0.2 | 2° | 1.30:1 | 30 | N | PS2-03-450/1N Add to RFQ |
| 0.4 | 1.0 | 0.4 | 18 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-03-450/1S Add to RFQ |
| 0.8 | 1.0 | 0.3 | 23 | 0.3 | 2° | 1.30:1 | 30 | N | PS2-04-450/1N Add to RFQ |
| 0.8 | 1.0 | 0.3 | 23 | 0.3 | 2° | 1.30:1 | 30 | SMA | PS2-04-450/3S Add to RFQ |
| 0.95 | 1.225 | 0.3 | 22 | 0.3 | 2° | 1.25:1 | 30 | N | PS2-05-450/3N Add to RFQ |
| 0.95 | 1.225 | 0.3 | 22 | 0.3 | 2° | 1.25:1 | 30 | SMA | PS2-05-450/4S Add to RFQ |
| 0.5 | 2.0 | 0.6 | 18 | 0.2 | 4° | 1.40:1 | 30 | N | PS2-06-450/1N Add to RFQ |
| 0.5 | 2.0 | 0.6 | 22 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-06-450/2S Add to RFQ |
| 1.0 | 2.0 | 0.3 | 22 | 0.2 | 3° | 1.30:1 | 30 | N | PS2-07-450/3N Add to RFQ |
| 1.0 | 2.0 | 0.3 | 22 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-07-450/4S Add to RFQ |
| 0.8 | 2.2 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-23-450/3S Add to RFQ |
| 0.8 | 2.5 | 0.5 | 20 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-25-450/2S Add to RFQ |
| 1.5 | 3.0 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | N | PS2-08-450/3N Add to RFQ |
| 1.5 | 3.0 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-08-450/4S Add to RFQ |
| 0.5 | 4.0 | 0.5 | 16 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-21-450/3S Add to RFQ |
| 1.0 | 4.0 | 0.4 | 20 | 0.2 | 5° | 1.40:1 | 30 | N | PS2-09-450/1N Add to RFQ |
| 1.0 | 4.0 | 0.4 | 20 | 0.2 | 5° | 1.40:1 | 30 | SMA | PS2-09-450/3S Add to RFQ |
| 2.0 | 4.0 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | N | PS2-10-450/3N Add to RFQ |
| 2.0 | 4.0 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-10-450/8S Add to RFQ |
| 3.625 | 4.25 | 0.3 | 21 | 0.2 | 2° | 1.35:1 | 30 | N | PS2-11-450/3N Add to RFQ |
| 3.625 | 4.25 | 0.3 | 21 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-11-450/8S Add to RFQ |
| 0.5 | 6.0 | 0.6 | 18 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-22-450/10S Add to RFQ |
| 5.8 | 6.45 | 0.3 | 21 | 0.2 | 2° | 1.30:1 | 30 | N | PS2-12-450/3N Add to RFQ |
| 5.8 | 6.45 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-12-450/8S Add to RFQ |
| 0.5 | 8.0 | 1.0 | 18 | 0.5 | 5° | 1.50:1 | 30 | SMA | PS2-27-450/10S Add to RFQ |
| 2.0 | 8.0 | 0.4 | 17 | 0.3 | 6° | 1.40:1 | 30 | N | PS2-13-450/3N Add to RFQ |
| 2.0 | 8.0 | 0.4 | 20 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-13-450/6S Add to RFQ |
| 4.0 | 8.0 | 0.4 | 18 | 0.2 | 4° | 1.40:1 | 30 | N | PS2-14-450/3N Add to RFQ |
| 4.0 | 8.0 | 0.4 | 20 | 0.2 | 2° | 1.40:1 | 30 | SMA | PS2-14-450/8S Add to RFQ |
| 7.2 | 8.5 | 0.5 | 17 | 0.3 | 6° | 1.40:1 | 30 | N | PS2-15-450/3N Add to RFQ |
| 7.2 | 8.5 | 0.5 | 20 | 0.2 | 3° | 1.40:1 | 30 | SMA | PS2-15-450/8S Add to RFQ |
| 8.0 | 12.4 | 0.4 | 20 | 0.2 | 4° | 1.35:1 | 30 | SMA | PS2-16-450/8S Add to RFQ |
| 10.0 | 15.0 | 0.4 | 20 | 0.2 | 4° | 1.40:1 | 30 | SMA | PS2-19-450/8S Add to RFQ |
| 0.5 | 18.0 | 1.7 | 16 | 0.6 | 10° | 1.50:1 | 30 | SMA | PS2-20-450/10S Add to RFQ |
| 1.0 | 18.0 | 1.5 | 17 | 0.5 | 8° | 1.60:1 | 30 | SMA | PS2-26-450/13S Add to RFQ |
| 2.0 | 18.0 | 1.6 | 18 | 0.5 | 8° | 1.70:1 | 30 | N | PS2-18-450/14N Add to RFQ |
| 2.0 | 18.0 | 1.0 | 15 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-18-450/16S Add to RFQ |
| 2.0 | 18.0 | 1.0 | 20 | 0.4 | 5° | 1.50:1 | 30 | SMA | PS2-18-450/19S Add to RFQ |
| 2.0 | 18.0 | 1.0 | 18 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-18-450/9S Add to RFQ |
| 5.0 | 18.0 | 0.5 | 17 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-17-450/8S Add to RFQ |
| 0.5 | 20.0 | 2.2 | 12 | 0.4 | 12° | 1.80:1 | 30 | SMA | PS2-24-450/10S Add to RFQ |
| 1.0 | 27.0 | 2.5 | 15 | 0.5 | 8° | 1.80:1 | 10 | SMA | PS2-51-450/13S Add to RFQ |
| 4.0 | 27.0 | 1.0 | 18 | 0.5 | 6° | 1.60:1 | 10 | SMA | PS2-50-450/8S Add to RFQ |
| 1.0 | 40.0 | 2.8 | 10 | 0.6 | 8° | 1.90:1 | 10 | 2.92 | PS2-55-450/17S Add to RFQ |
| 2.0 | 40.0 | 2.5 | 13 | 0.6 | 8° | 1.90:1 | 10 | 2.92 | PS2-54-450/18S Add to RFQ |
| 4.0 | 40.0 | 2.0 | 13 | 1.0 | 10° | 1.90:1 | 10 | 2.92 | PS2-52-450/8S Add to RFQ |
| 15.0 | 40.0 | 1.2 | 15 | 0.5 | 7° | 1.70:1 | 10 | 2.92 | PS2-53-450/15S Add to RFQ |
| 8.0 | 60.0 | 3.0 | 10 | 1.0 | 15° | 2.00:1 Typ. | 10 | 1.85 | PS2-56-450/15S Add to RFQ |
| 10.0 | 70.0 | 3.0 | 10 | 1.0 | 15° | 2.00:1 Typ. | 10 | 1.85 | PS2-57-450/15S Add to RFQ |
- Input power is specified for load VSWR better than 1.20:1.
- BNC, TNC, and F connectors and other frequency ranges also available, contact sales.
- Higher power models available, contact sales.
|
Frequency Range (GHz) |
Insertion Loss (dB) max. |
Isolation (dB) min. |
Amplitude Balance (dB) max. |
Phase Balance (deg) max. |
VSWR max. |
Input Power (watts) max. |
Package Type |
P/N | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| 0.8 | 1.0 | 0.6 | 18 | 0.2 | 2° | 1.40:1 | 10 | Surface | PB-14-G Add to RFQ |
| 0.8 | 1.0 | 0.5 | 20 | 0.2 | 2° | 1.40:1 | 1 | Surface | PB-2 Add to RFQ |
| 1.7 | 2.0 | 0.7 | 18 | 0.2 | 2° | 1.40:1 | 10 | Surface | PB-11-G Add to RFQ |
| 1.7 | 2.0 | 0.5 | 20 | 0.2 | 2° | 1.40:1 | 1 | Surface | PB-4 Add to RFQ |
| 2.2 | 2.5 | 0.6 | 18 | 0.3 | 3° | 1.40:1 | 1 | Surface | PB-5 Add to RFQ |
| 2.3 | 2.7 | 0.7 | 18 | 0.3 | 3° | 1.40:1 | 10 | Surface | PB-12-G Add to RFQ |
| 2.7 | 2.9 | 0.7 | 18 | 0.3 | 3° | 1.40:1 | 10 | Surface | PB-15-G Add to RFQ |
| 3.0 | 3.8 | 0.8 | 18 | 0.3 | 3° | 1.40:1 | 10 | Surface | PB-13-G Add to RFQ |
| 2.0 | 4.0 | 0.4 | 20 | 0.3 | 3° | 1.40:1 | 1 | Drop-In | P2S-03-L1 Add to RFQ |
| 4.0 | 8.0 | 0.4 | 20 | 0.3 | 3° | 1.50:1 | 1 | Drop-In | P2S-02-S1 Add to RFQ |
| 4.0 | 8.0 | 0.4 | 20 | 0.3 | 3° | 1.40:1 | 1 | Drop-In | P2S-04-L1 Add to RFQ |
| 3.0 | 10.0 | 0.5 | 18 | 0.3 | 4° | 1.50:1 | 1 | Drop-In | P2S-05-L1 Add to RFQ |
| 5.0 | 10.0 | 0.4 | 20 | 0.3 | 4° | 1.50:1 | 1 | Drop-In | P2S-01-S1 Add to RFQ |
- Input power is specified for load VSWR better than 1.20:1.
