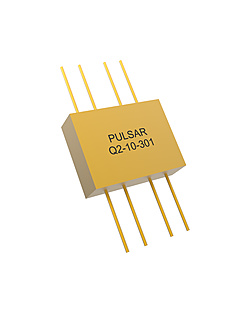

3 dB Flatpack 90° Hybrid Coupler, 90-180 MHz
Model: Q2-10-301
View All 90° Hybrid Couplers/Dividers
Pulsar hybrid Q2-10-301 covers the range 90-180 MHz, while our complete line of hybrids cover frequency ranges up to 40 GHz. Any Pulsar model can be customized to suit your specific performance or package requirements at little to no extra cost. Pulsar is ISO-9001 certified and ITAR registered.
- Specifications
- Support
Outline 301
0.38" x 0.51" x 0.15"
| Name: | Q2-10-301 |
| Bandwidth: | 2:1 |
| Frequency Range: | 90-180 MHz |
| Insertion Loss: | 0.5 dB max. |
| Isolation: | 20 dB min. |
| Amplitude Balance: | 0.6 dB max. |
| Phase Balance: | 2° max. |
| VSWR: | 1.30:1 max. |
| Package Type: | Pin |
- Power rating 1 watt max. for load VSWR better than 1.20:1.
-
Custom performance and package requirements available.
