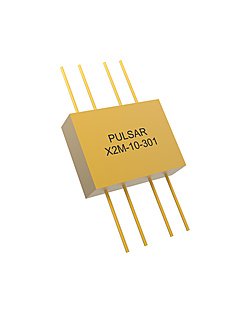

DC Coupled Flatpack Double Balanced Mixer, 800-4000 MHz
Model: X2M-10-301
View All Double Balanced RF Mixers
Pulsar mixer X2M-10-301 covers the range 800-4000 MHz, while our complete line of mixers cover frequency ranges up to 18 GHz. Any Pulsar model can be customized to suit your specific performance or package requirements at little to no extra cost. Pulsar is ISO-9001 certified and ITAR registered.
- Specifications
- Support
Outline 301
0.38" x 0.51" x 0.15"
| Name: | X2M-10-301 |
| Frequency Range: | |
| LO/RF: | 800-4000 MHz |
| IF: | DC-700 MHz |
| LO Drive: | +17 dBm |
| Conversion Loss: | 9.0 dB max. |
| 1 dB Compression Point: | +10 dBm typ. |
| Isolation: | |
| L/R: | 25 dB min. |
| L/I: | 20 dB min. |
| Connector Type: | Pin |
- IF polarity is negative for DC coupled mixers.
-
Custom performance and package requirements available.
